72T Flex-Head Ratcheting Combination Wrench
- Features

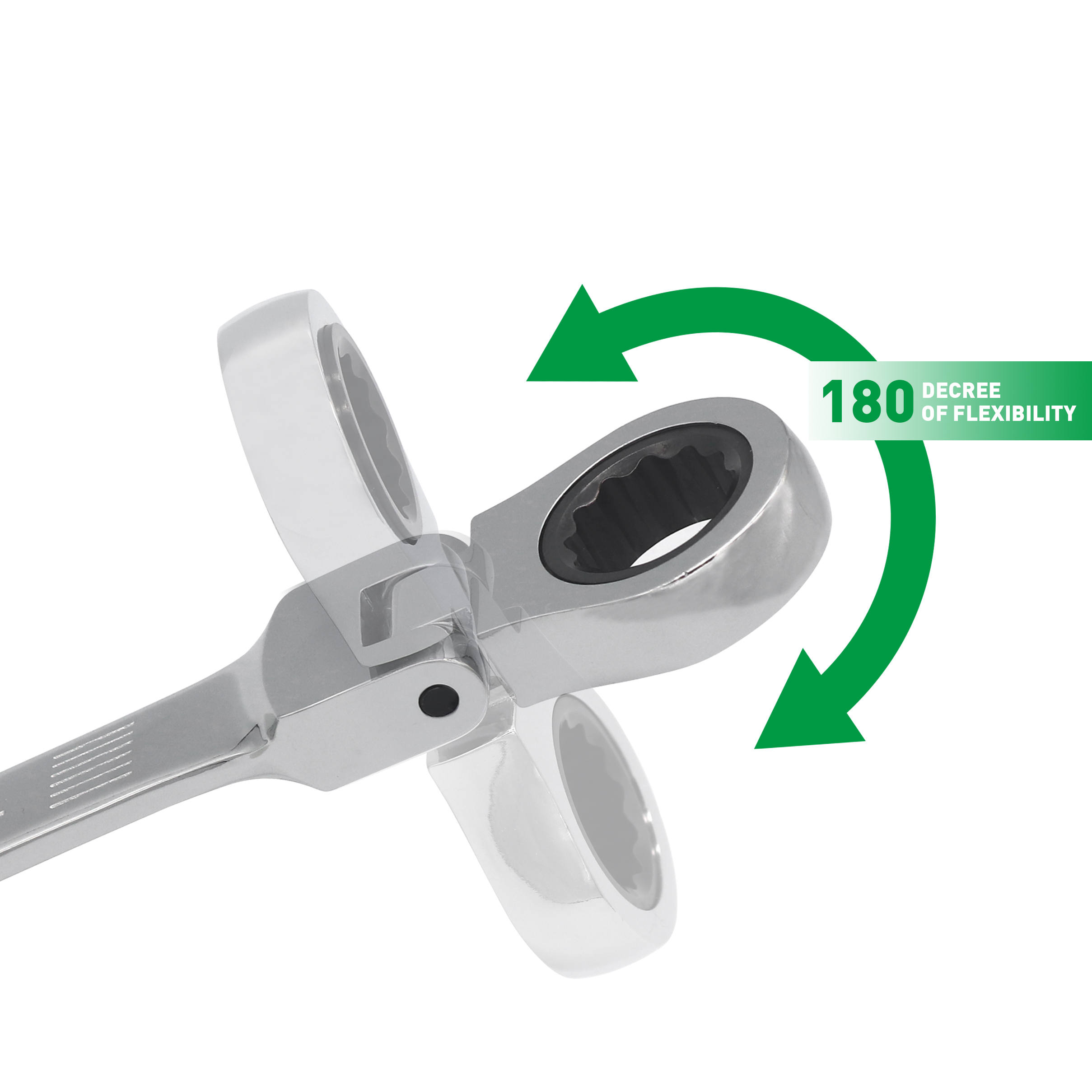

- Box end head pivots 180 degrees to easily get around obstructions
- 12-point box end snugly fits hex-shaped fastener heads and resists slipping off while you work
- Box end opening is designed to grip flat sides of fastener heads, not corners, to prevent round-off

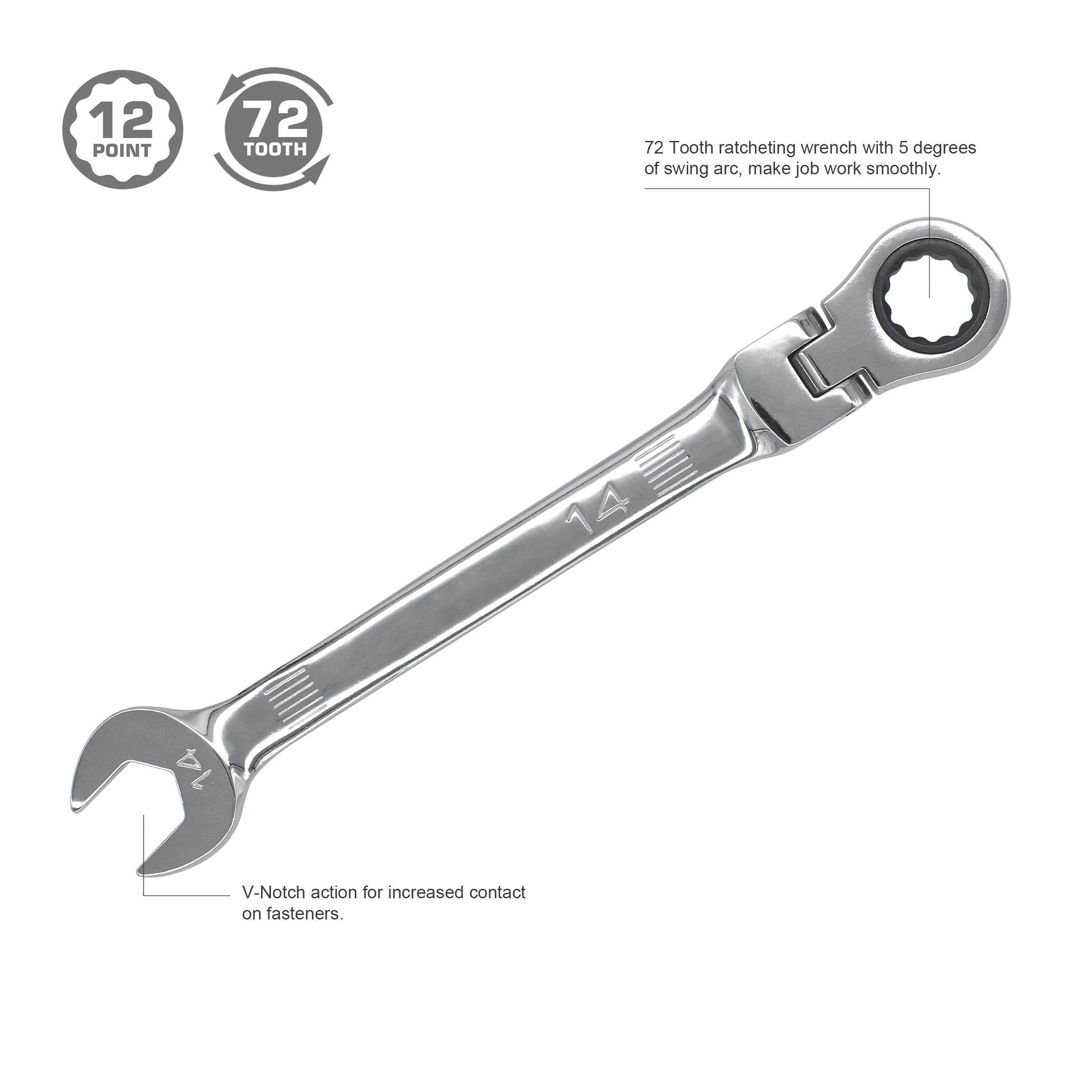

- 72-tooth ratchet gear needs only a 5-degree working swing arc
- Open end is angled 15 degrees so the wrench can be flipped over to engage fasteners twice as often in tight space

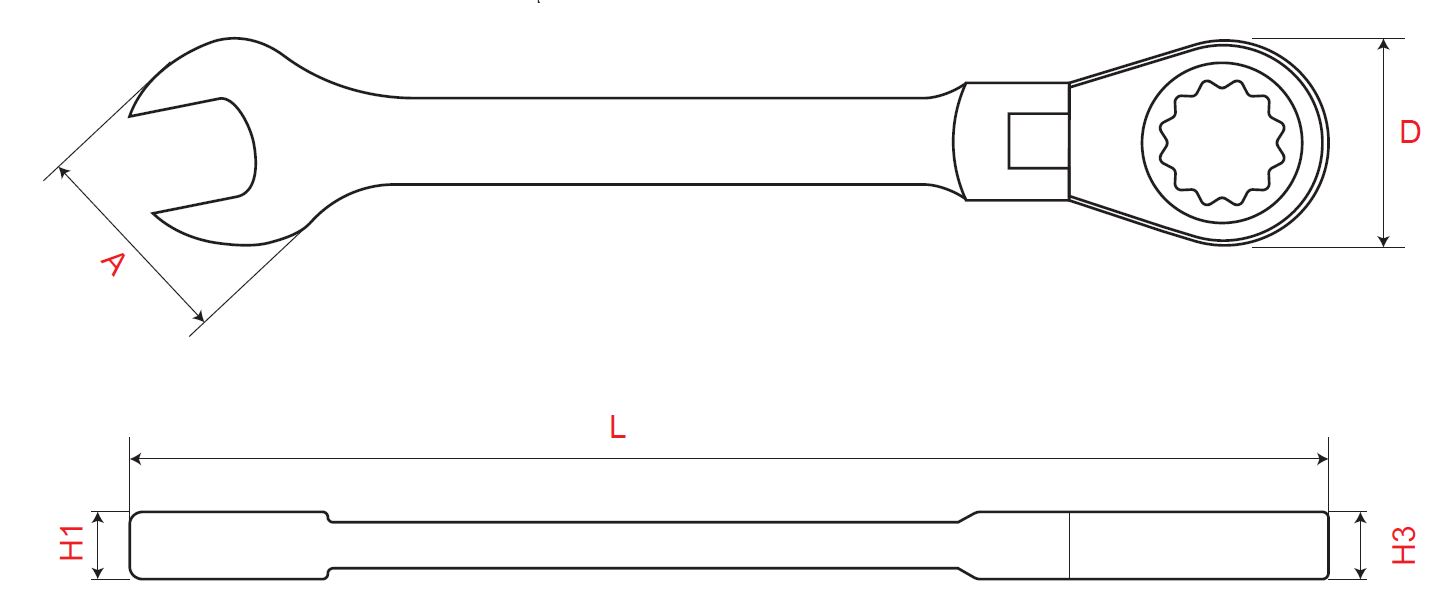

Specification:
Item No. | Size | A | D | H1 | H3 | Length (mm) |
---|---|---|---|---|---|---|
1/4" | 15.4 | 17.4 | 4.1 | 6.9 | 137 | |
5/16" | 18.4 | 17.4 | 4.6 | 6.9 | 143 | |
3/8" | 21.9 | 20.9 | 5 | 7.6 | 152 | |
7/16" | 23.9 | 22.9 | 5.4 | 8.2 | 164 | |
1/2" | 27.9 | 26.4 | 6 | 9.2 | 177 | |
9/16" | 30.4 | 28.4 | 6.4 | 9.3 | 189 | |
5/8" | 34.4 | 31.4 | 6.9 | 10.5 | 205 | |
11/16" | 38.4 | 33.4 | 7.4 | 10.8 | 221 | |
3/4" | 41.9 | 35.4 | 7.7 | 11.4 | 241 | |
13/16" | 46.4 | 41.9 | 8.9 | 13.7 | 304 | |
7/8" | 46.4 | 41.9 | 8.9 | 13.7 | 304 | |
15/16" | 51.4 | 46.9 | 9.5 | 14.5 | 335 | |
1" | 51.4 | 46.9 | 9.5 | 14.5 | 335 | |
1-1/16" | 56.4 | 52.7 | 10.3 | 15.4 | 366 | |
1-1/8" | 62.4 | 59.7 | 10.9 | 16.6 | 402 | |
1-1/4" | 66.4 | 63.7 | 11.3 | 16.6 | 423 |
Item No. | Size | A | D | H1 | H3 | Length (mm) |
---|---|---|---|---|---|---|
6mm | 15.4 | 17.4 | 4.1 | 6.9 | 137 | |
7mm | 18.4 | 17.4 | 4.6 | 6.9 | 143 | |
8mm | 18.4 | 17.4 | 4.6 | 6.9 | 143 | |
9mm | 21.9 | 20.9 | 5 | 7.6 | 152 | |
10mm | 21.9 | 20.9 | 5 | 7.6 | 152 | |
11mm | 23.9 | 22.9 | 5.4 | 8.2 | 164 | |
12mm | 27.9 | 26.4 | 6 | 9.2 | 177 | |
13mm | 27.9 | 26.4 | 6 | 9.2 | 177 | |
14mm | 30.4 | 28.4 | 6.4 | 9.3 | 189 | |
15mm | 34.4 | 31.4 | 6.9 | 10.5 | 205 | |
16mm | 34.4 | 31.4 | 6.9 | 10.5 | 205 | |
17mm | 38.4 | 33.4 | 7.4 | 10.8 | 221 | |
18mm | 38.4 | 33.4 | 7.4 | 10.8 | 221 | |
19mm | 41.9 | 35.4 | 7.7 | 11.4 | 241 | |
20mm | 46.4 | 41.9 | 8.9 | 13.7 | 304 | |
21mm | 46.4 | 41.9 | 8.9 | 13.7 | 304 | |
22mm | 46.4 | 41.9 | 8.9 | 13.7 | 304 | |
23mm | 46.4 | 41.9 | 8.9 | 13.7 | 304 | |
24mm | 51.4 | 46.9 | 9.5 | 14.5 | 335 | |
25mm | 51.4 | 46.9 | 9.5 | 14.5 | 335 | |
26mm | 56.4 | 52.7 | 10.3 | 15.4 | 366 | |
27mm | 56.4 | 52.7 | 10.3 | 15.4 | 366 | |
28mm | 62.4 | 59.7 | 10.9 | 16.6 | 402 | |
29mm | 62.4 | 59.7 | 10.9 | 16.6 | 402 | |
30mm | 62.4 | 59.7 | 10.9 | 16.6 | 402 | |
31mm | 66.4 | 63.7 | 11.3 | 16.6 | 423 | |
32mm | 66.4 | 63.7 | 11.3 | 16.6 | 423 |
