72T Ratcheting Combination Wrench
- Features
- Chrome Vanadium Steel
- Easy-to-read size callouts
- Professional chrome protective plating on surface brings durability and corrosion resistance

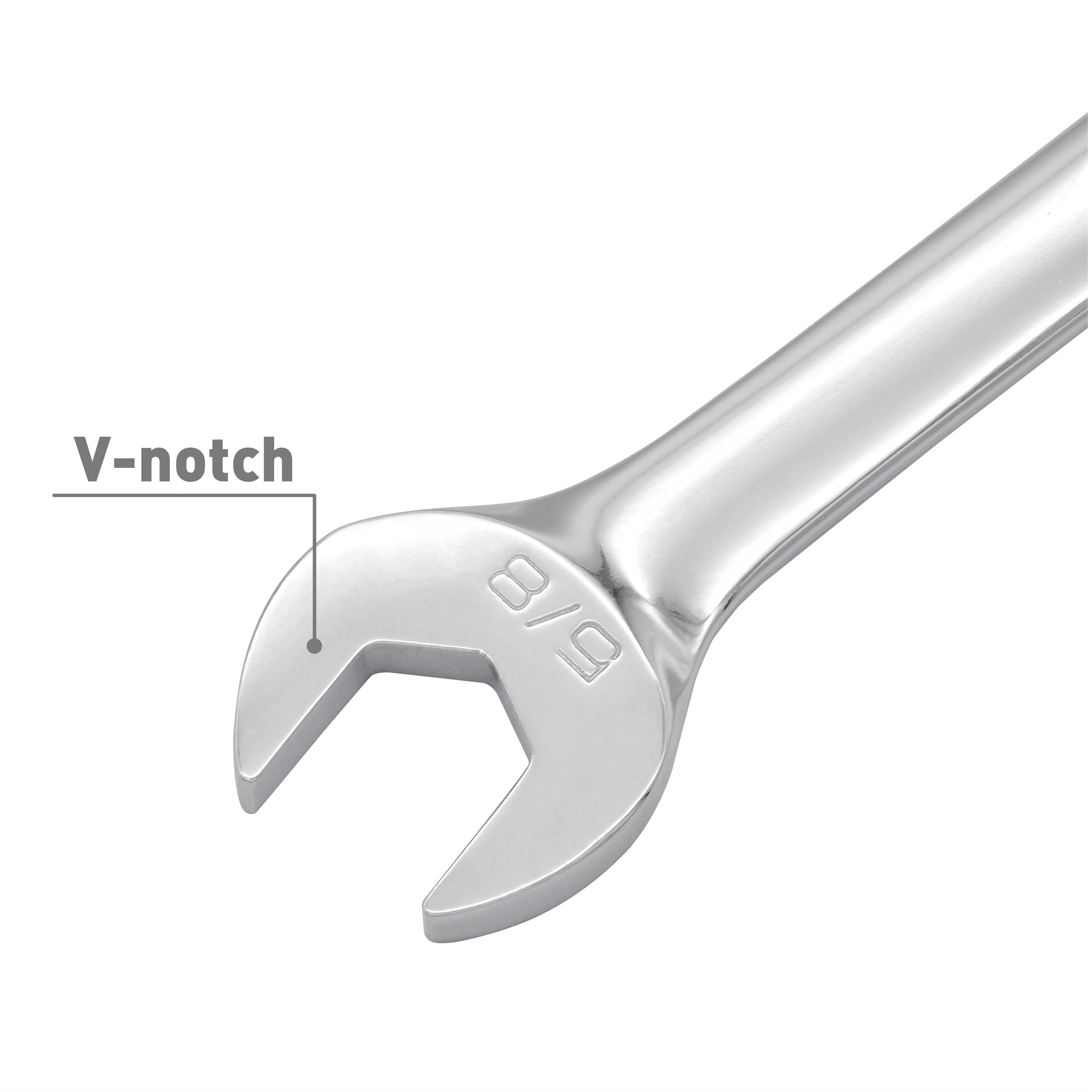

- V-Notch action for increased contact on fasteners

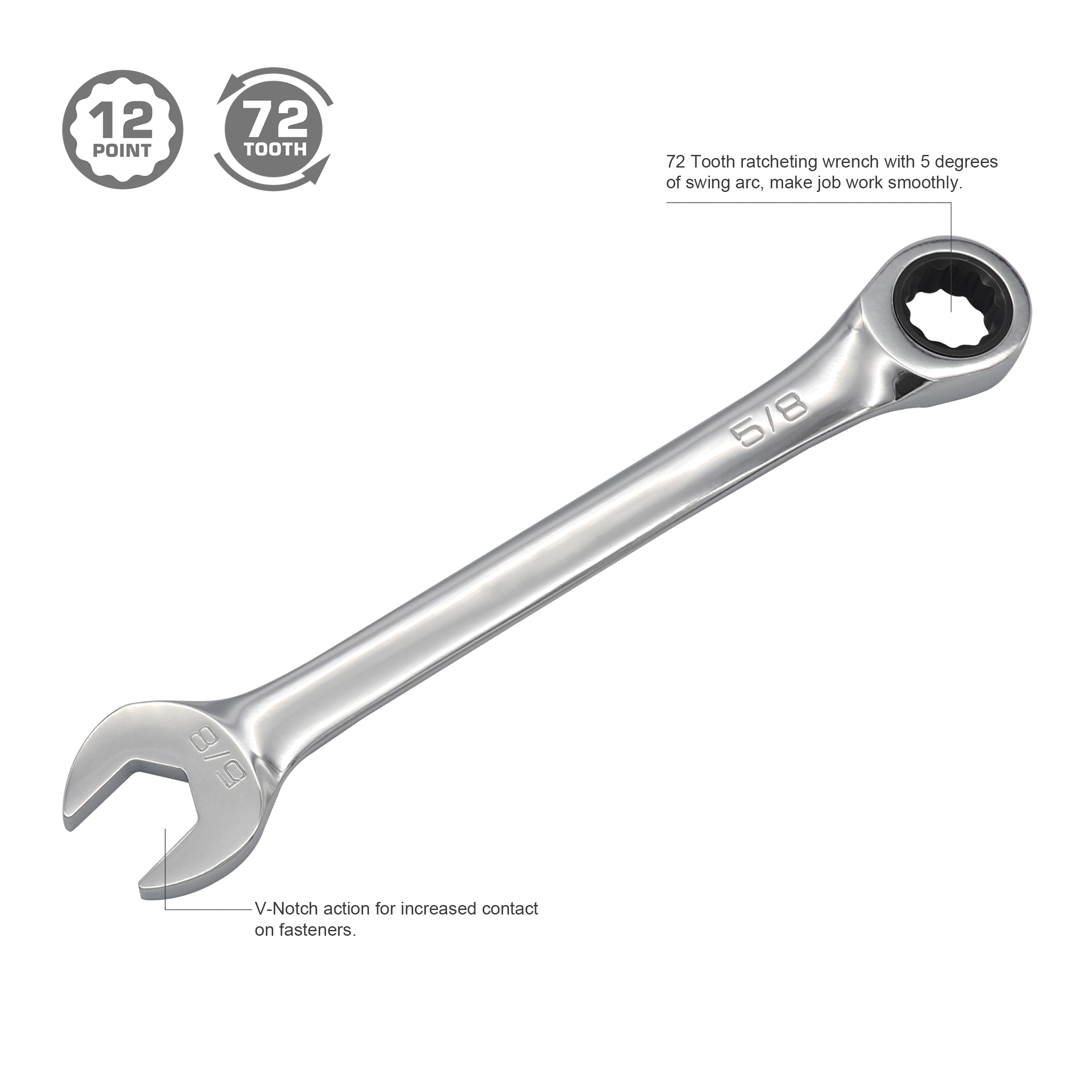

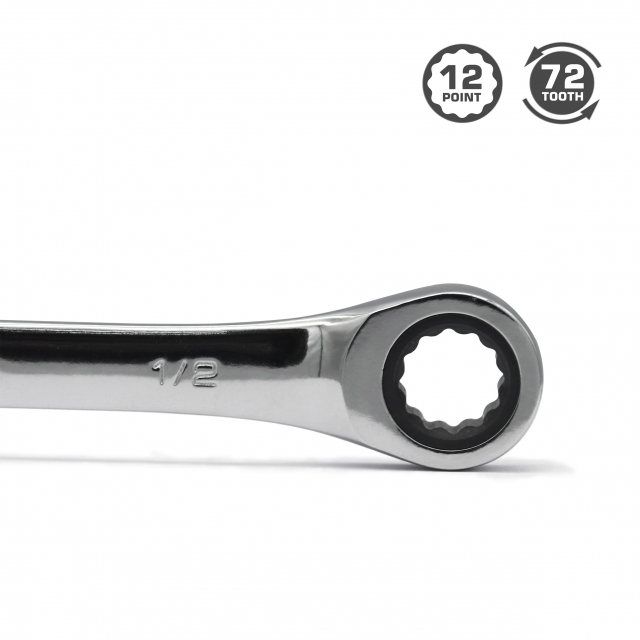

- 72 Tooth ratcheting wrench with 5 degrees of swing arc, make job work smoothly
.JPG)

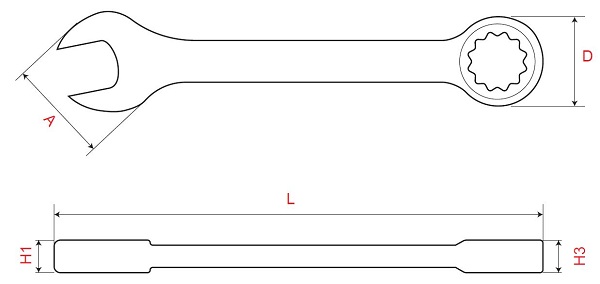

Specification:
| Item No. | Size | A | D | H1 | H3 | Length(mm) |
|---|---|---|---|---|---|---|
| CW121201 | 1/4" | 15.4 | 17.4 | 4.1 | 6.9 | 124.5 |
| CW121202 | 5/16" | 18.4 | 17.4 | 4.6 | 6.9 | 134.5 |
| CW121203 | 11/32" | 21.9 | 20.9 | 5 | 7.6 | 153 |
| CW121204 | 3/8" | 21.9 | 20.9 | 5 | 7.6 | 153 |
| CW121205 | 7/16" | 23.9 | 22.9 | 5.4 | 8.2 | 165.5 |
| CW121206 | 1/2" | 27.9 | 26.4 | 6 | 9.2 | 178.5 |
| CW121207 | 9/16" | 30.4 | 28.4 | 6.4 | 9.3 | 191.5 |
| CW121208 | 5/8" | 34.4 | 31.4 | 6.9 | 10.5 | 207 |
| CW121209 | 11/16" | 38.4 | 33.4 | 7.4 | 10.8 | 223 |
| CW121210 | 3/4" | 41.9 | 35.4 | 7.7 | 11.4 | 241.5 |
| CW121211 | 13/16" | 46.4 | 41.9 | 9.4 | 13.7 | 272.5 |
| CW121212 | 7/8" | 46.4 | 41.9 | 9.4 | 13.7 | 272.5 |
| CW121213 | 15/16" | 51.4 | 46.9 | 10 | 14.5 | 312.5 |
| CW121214 | 1" | 51.4 | 46.9 | 10 | 14.5 | 312.5 |
| CW121215 | 1-1/16" | 56.4 | 52.7 | 10.8 | 15.4 | 357.5 |
| CW121216 | 1-1/8" | 62.4 | 59.7 | 11.4 | 16.6 | 402.5 |
| CW121217 | 1-1/4" | 66.4 | 63.7 | 11.8 | 16.6 | 422.5 |
| Item No. | Size | A | D | H1 | H3 | Length(mm) |
|---|---|---|---|---|---|---|
| CW121206 | 6mm | 15.4 | 17.4 | 4.1 | 6.9 | 124.5 |
| CW121207 | 7mm | 18.4 | 17.4 | 4.6 | 6.9 | 134.5 |
| CW121208 | 8mm | 18.4 | 17.4 | 4.6 | 6.9 | 134.5 |
| CW121209 | 9mm | 21.9 | 20.9 | 5 | 7.6 | 153 |
| CW121210 | 10mm | 21.9 | 20.9 | 5 | 7.6 | 153 |
| CW121211 | 11mm | 23.9 | 22.9 | 5.4 | 8.2 | 165.5 |
| CW121212 | 12mm | 27.9 | 26.4 | 6 | 9.2 | 178.5 |
| CW121213 | 13mm | 27.9 | 26.4 | 6 | 9.2 | 178.5 |
| CW121214 | 14mm | 30.4 | 28.4 | 6.4 | 9.3 | 191.5 |
| CW121215 | 15mm | 34.4 | 31.4 | 6.9 | 10.5 | 207 |
| CW121216 | 16mm | 34.4 | 31.4 | 6.9 | 10.5 | 207 |
| CW121217 | 17mm | 38.4 | 33.4 | 7.4 | 10.8 | 223 |
| CW121218 | 18mm | 38.4 | 33.4 | 7.4 | 10.8 | 223 |
| CW121219 | 19mm | 41.9 | 35.4 | 7.7 | 11.4 | 241.5 |
| CW121220 | 20mm | 46.4 | 41.9 | 9.4 | 13.7 | 272.5 |
| CW121221 | 21mm | 46.4 | 41.9 | 9.4 | 13.7 | 272.5 |
| CW121222 | 22mm | 46.4 | 41.9 | 9.4 | 13.7 | 272.5 |
| CW121223 | 23mm | 46.4 | 41.9 | 9.4 | 13.7 | 272.5 |
| CW121224 | 24mm | 51.4 | 46.9 | 10 | 14.5 | 312.5 |
| CW121225 | 25mm | 51.4 | 46.9 | 10 | 14.5 | 312.5 |
| CW121226 | 26mm | 56.4 | 52.7 | 10.8 | 15.4 | 357.5 |
| CW121227 | 27mm | 56.4 | 52.7 | 10.8 | 15.4 | 357.5 |
| CW121228 | 28mm | 62.4 | 59.7 | 11.4 | 16.6 | 402.5 |
| CW121229 | 29mm | 62.4 | 59.7 | 11.4 | 16.6 | 402.5 |
| CW121230 | 30mm | 62.4 | 59.7 | 11.4 | 16.6 | 402.5 |
| CW121231 | 31mm | 66.4 | 63.7 | 11.8 | 16.6 | 422.5 |
| CW121232 | 32mm | 66.4 | 63.7 | 11.8 | 16.6 | 422.5 |
72T Ratcheting Combination Wrench
