Combination Wrench
- Features
- High strength chrome vanadium steel construction and heat treated for strength and durability
- Size conveniently stamped on both ends of the beam for quick identification

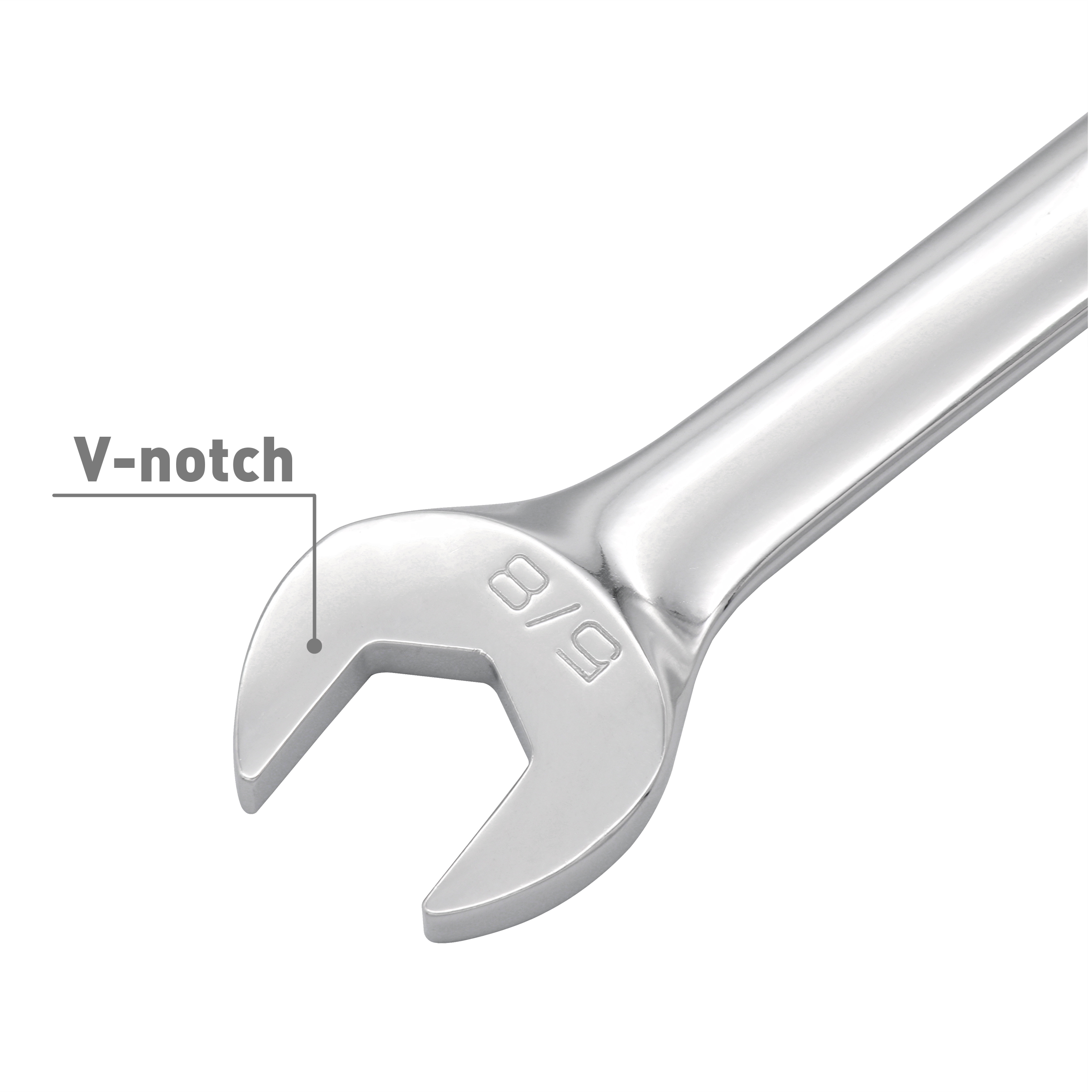

- V-Notch ratcheting action for increased contact on fasteners

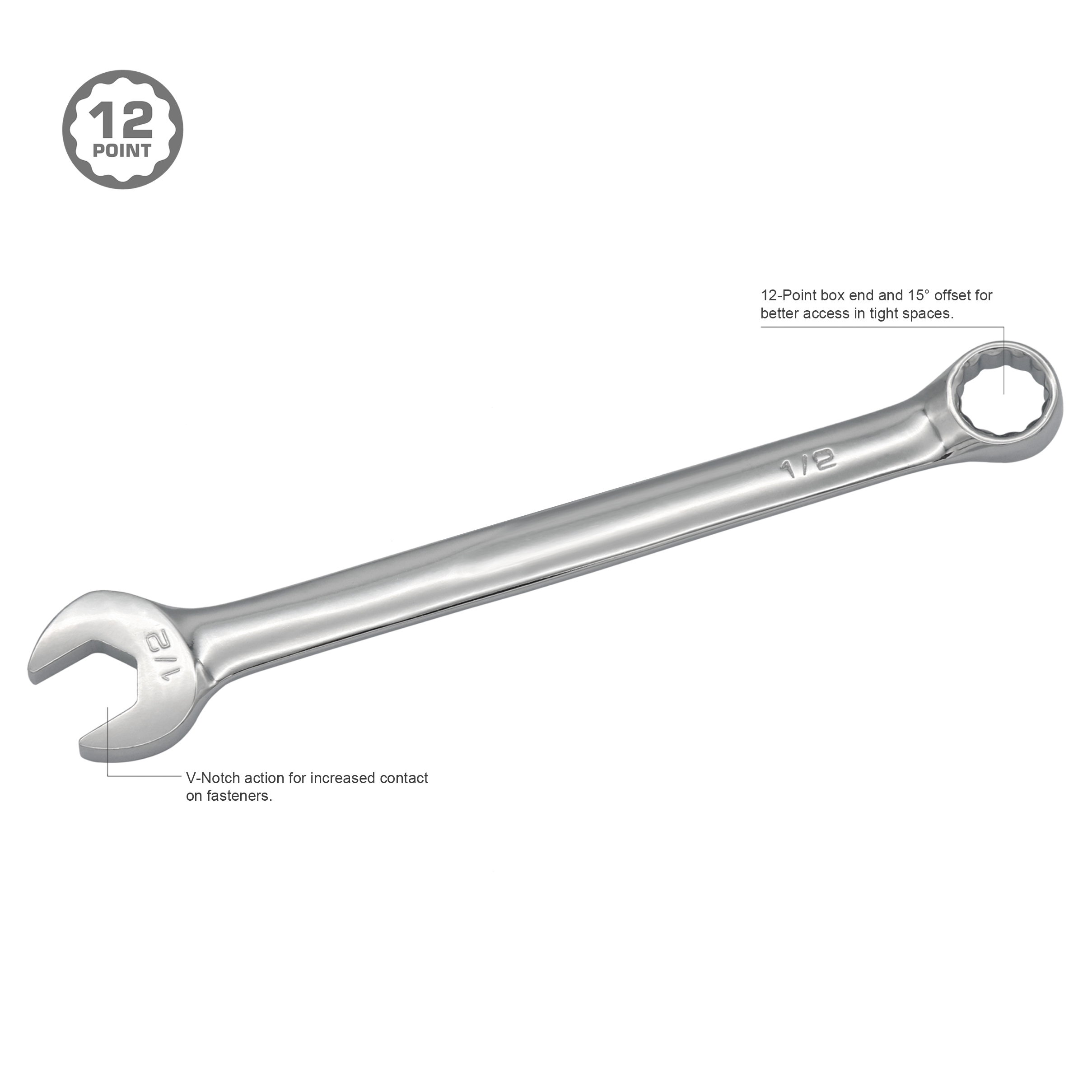

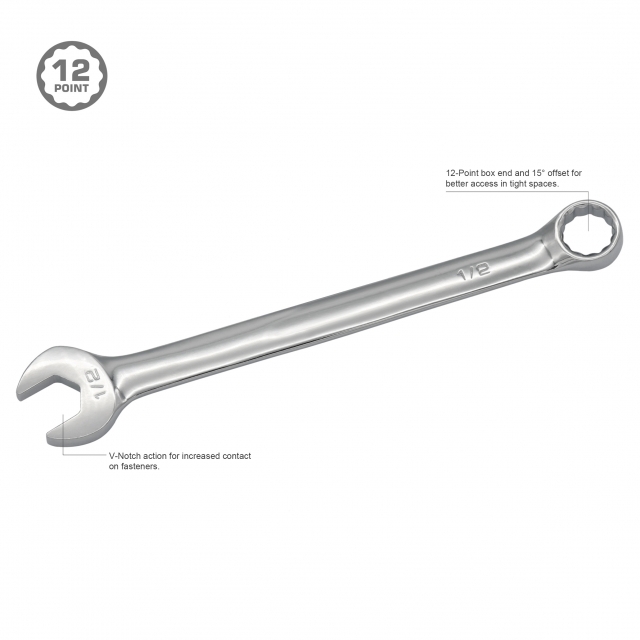

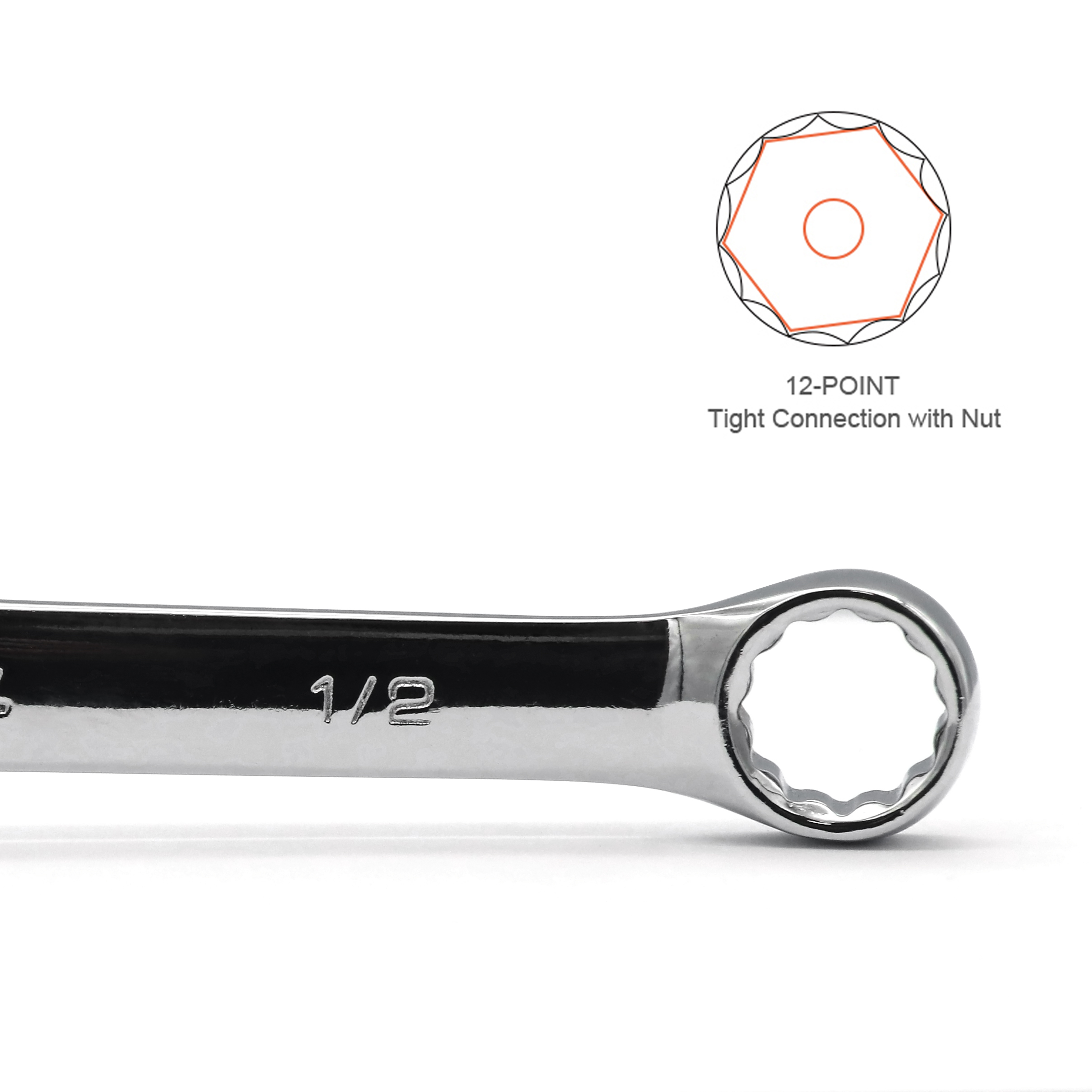

- 12-Point box end

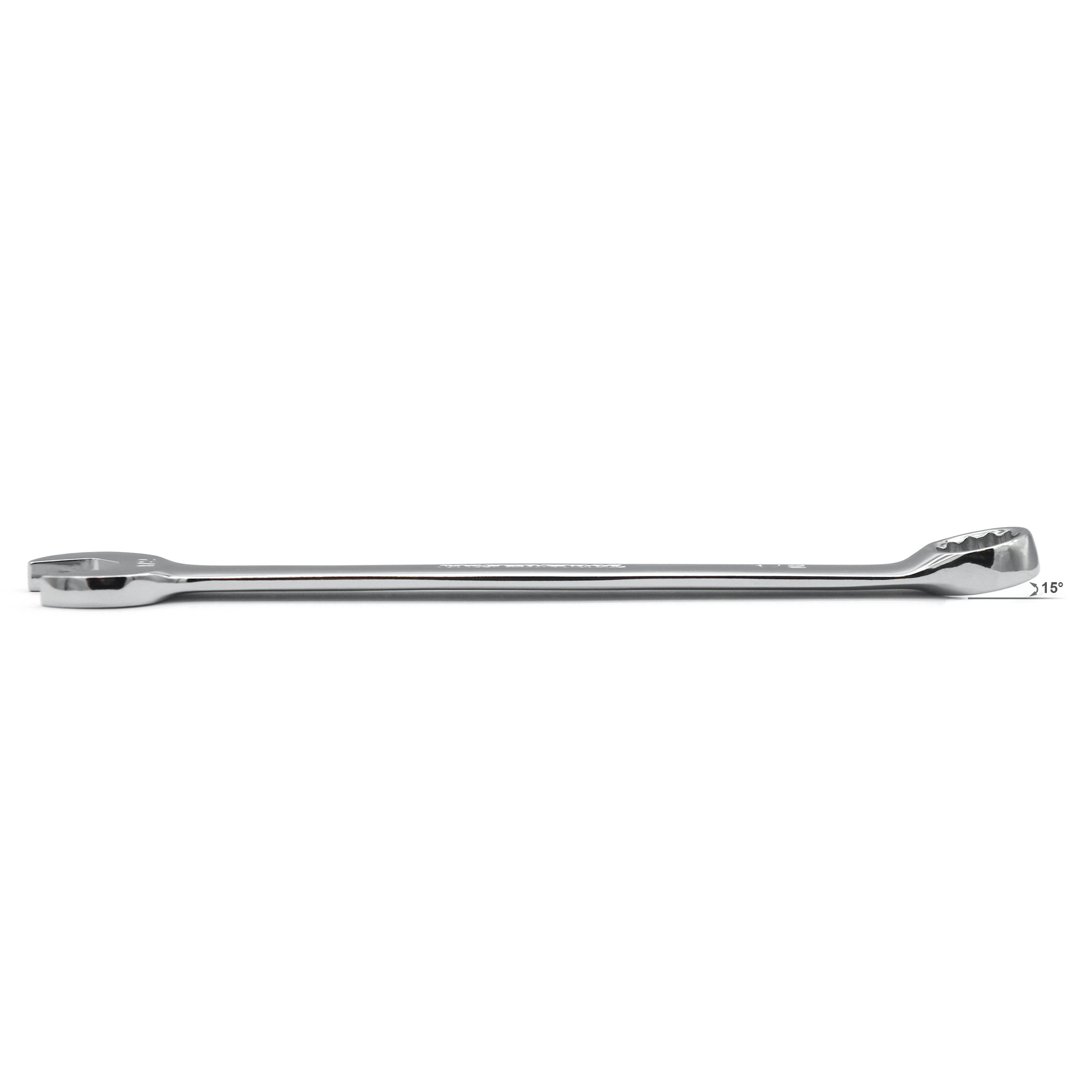

- Wrenches feature a 15° offset box end angle, providing clearance and easier to reach around obstructions
- Professional quality hand tools make most jobs easier and faster
- ASME B107.100 standards

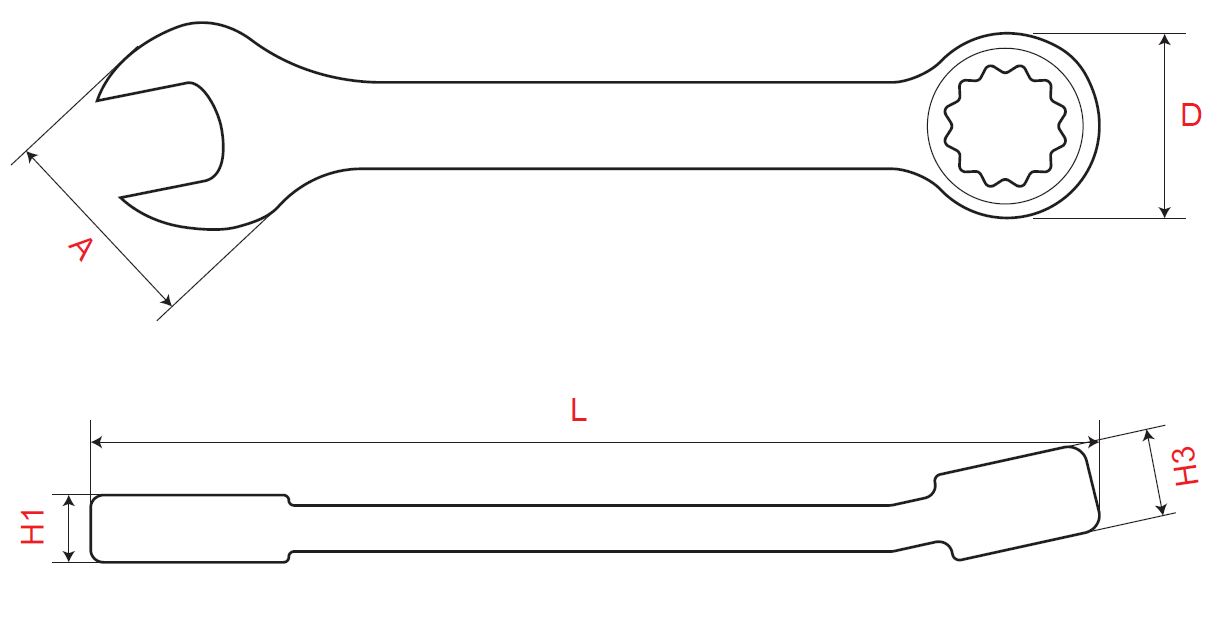

Specification:
12-Point Combination Wrench Standard, SAE
| Item No. |
Size |
A |
D |
H1 |
H3 |
Length(mm) |
| CW101201 |
1/4" |
15.4 |
10.4 |
4.1 |
5.4 |
101.0 |
| CW101202 |
5/16" |
18.4 |
12.9 |
4.6 |
5.9 |
121.0 |
| CW101203 |
3/8" |
21.9 |
15.4 |
5.0 |
6.7 |
141.5 |
| CW101204 |
7/16" |
23.9 |
17.4 |
5.2 |
7.1 |
151.5 |
| CW101205 |
1/2" |
27.9 |
19.4 |
5.6 |
7.7 |
171.5 |
| CW101206 |
9/16" |
30.4 |
20.9 |
5.9 |
8.3 |
182.0 |
| CW101207 |
5/8" |
34.4 |
24.4 |
6.4 |
9.3 |
202.0 |
| CW101208 |
11/16" |
36.4 |
25.9 |
6.8 |
10.0 |
212.5 |
| CW101209 |
3/4" |
40.9 |
28.9 |
7.4 |
10.7 |
232.0 |
| CW101210 |
13/16" |
45.4 |
31.9 |
7.9 |
11.7 |
253.0 |
| CW101211 |
7/8" |
47.4 |
32.9 |
8.1 |
12.2 |
263.0 |
| CW101212 |
15/16" |
50.4 |
34.9 |
8.6 |
12.8 |
285.5 |
| CW101213 |
1" |
52.4 |
36.4 |
8.8 |
13.3 |
301.0 |
| CW101214 |
1-1/16" |
56.4 |
40.5 |
9.2 |
13.4 |
335.0 |
| CW101215 |
1-1/8" |
60.4 |
43.5 |
9.8 |
14.8 |
370.5 |
| CW101216 |
1-3/16" |
62.4 |
45.0 |
10.2 |
15.6 |
390.0 |
| CW101217 |
1-1/4" |
66.4 |
48.0 |
10.6 |
16.2 |
409.5 |
| CW101218 |
1-5/16" |
69.2 |
50.2 |
11.6 |
15.7 |
409.5 |
| CW101219 |
1-3/8" |
74.6 |
54.3 |
13.2 |
18.5 |
410.0 |
| CW101220 |
1-7/16" |
74.6 |
54.3 |
13.2 |
18.5 |
410.0 |
| CW101221 |
1-1/2" |
77.0 |
57.0 |
14.4 |
19.0 |
440.0 |
| CW101222 |
1-5/8" |
83.6 |
61.3 |
14.5 |
21.5 |
460.0 |
| CW101223 |
1-11/16" |
83.6 |
61.3 |
14.5 |
21.5 |
460.0 |
| CW101224 |
1-3/4" |
89.3 |
63.9 |
15.0 |
21.7 |
500.0 |
| CW101225 |
1-13/16" |
89.3 |
63.9 |
15.0 |
21.7 |
500.0 |
| CW101226 |
1-7/8" |
97.0 |
73.5 |
16.9 |
23.1 |
540.0 |
| CW101227 |
2" |
97.0 |
73.5 |
16.9 |
23.1 |
540.0 |
12-Point Combination Wrench Standard, METRIC
| Item No. |
Size |
A |
D |
H1 |
H3 |
Length(mm) |
| CW111206 |
6mm |
15.4 |
10.4 |
4.1 |
5.4 |
101.0 |
| CW111207 |
7mm |
16.9 |
11.4 |
4.4 |
5.7 |
111.0 |
| CW111208 |
8mm |
18.4 |
12.9 |
4.6 |
5.9 |
121.0 |
| CW111209 |
9mm |
20.4 |
14.4 |
4.8 |
6.2 |
131.0 |
| CW111210 |
10mm |
21.9 |
15.4 |
5.0 |
6.7 |
141.5 |
| CW111211 |
11mm |
23.9 |
17.4 |
5.2 |
7.1 |
151.5 |
| CW111212 |
12mm |
25.9 |
18.4 |
5.4 |
7.4 |
161.5 |
| CW111213 |
13mm |
27.9 |
19.4 |
5.6 |
7.7 |
171.5 |
| CW111214 |
14mm |
30.4 |
20.9 |
5.9 |
8.3 |
182.0 |
| CW111215 |
15mm |
32.4 |
22.4 |
6.1 |
8.8 |
192.0 |
| CW111216 |
16mm |
34.4 |
24.4 |
6.4 |
9.3 |
202.0 |
| CW111217 |
17mm |
36.4 |
25.9 |
6.8 |
10.0 |
212.5 |
| CW111218 |
18mm |
38.4 |
27.4 |
7.1 |
10.4 |
222.5 |
| CW111219 |
19mm |
40.9 |
28.9 |
7.4 |
10.7 |
232.0 |
| CW111220 |
20mm |
43.4 |
30.4 |
7.6 |
11.2 |
242.5 |
| CW111221 |
21mm |
45.4 |
31.9 |
7.9 |
11.7 |
253.0 |
| CW111222 |
22mm |
47.4 |
32.9 |
8.1 |
12.2 |
263.0 |
| CW111223 |
23mm |
48.9 |
33.9 |
8.3 |
12.5 |
273.0 |
| CW111224 |
24mm |
50.4 |
34.9 |
8.6 |
12.8 |
285.5 |
| CW111225 |
25mm |
52.4 |
36.4 |
8.8 |
13.3 |
301.0 |
| CW111226 |
26mm |
54.4 |
37.4 |
9.0 |
13.7 |
318.5 |
| CW111227 |
27mm |
56.4 |
40.5 |
9.2 |
13.4 |
335.0 |
| CW111228 |
28mm |
58.4 |
42.0 |
9.4 |
14.0 |
352.5 |
| CW111229 |
29mm |
60.4 |
43.5 |
9.8 |
14.8 |
370.5 |
| CW111230 |
30mm |
62.4 |
45.0 |
10.2 |
15.6 |
390.0 |
| CW111231 |
31mm |
66.4 |
48.0 |
10.6 |
16.2 |
409.5 |
| CW111232 |
32mm |
66.4 |
48.0 |
10.6 |
16.2 |
409.5 |
| CW111236 |
36mm |
74.6 |
54.3 |
13.2 |
18.5 |
410.0 |
