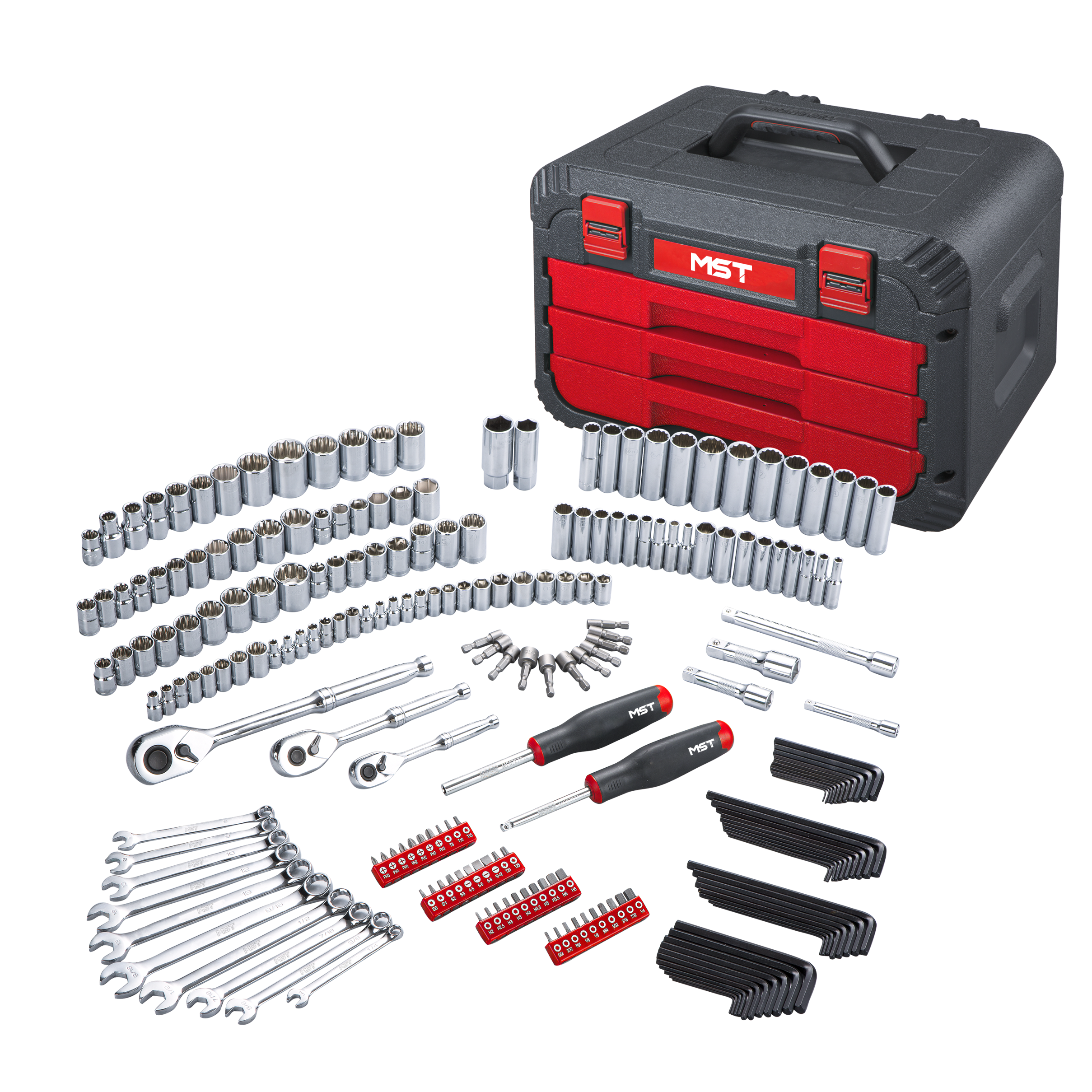

220PCS Mechanic's Tool Set
- Features
- 1/4 ,3/8 and 1/2" 72-tooth quick-release ratchets feature a fine and convenient operation
- Wrenches feature a 15° offset box end angle, providing clearance and easier to reach around obstructions
- Magnetic bit driver with 40 bits covers the commonly used screws and bit fasteners
- Large laser-etched marking for clear and quick identification
- Precision forged from chrome vanadium steel for optimum strength and durability

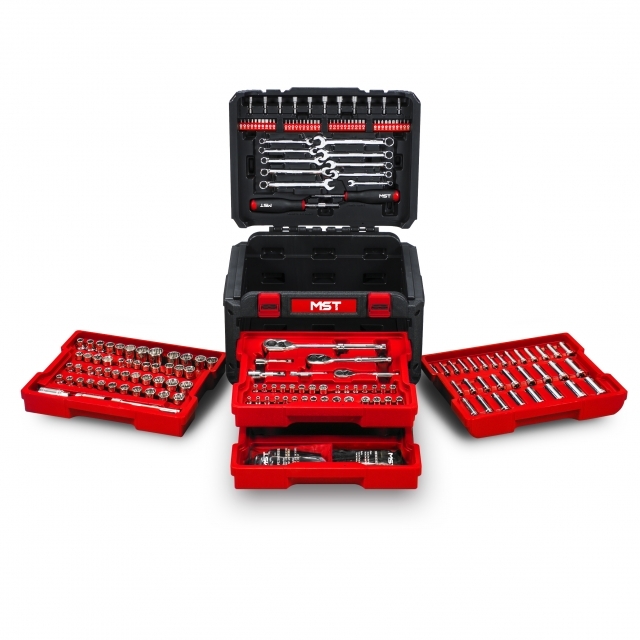

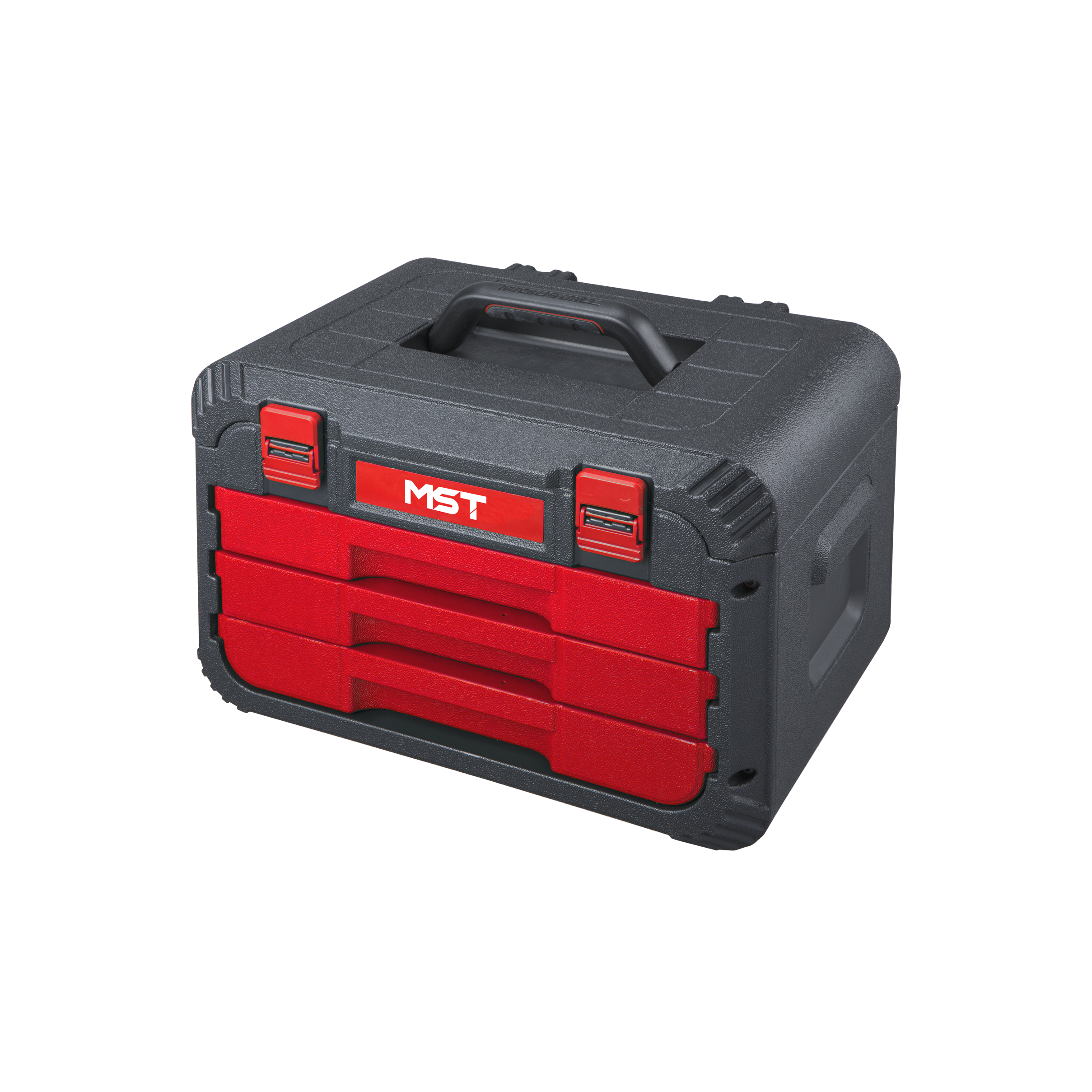

- All tools are neatly organized in a sturdy blow-molded case for easy transport and storage
- Removable pins on blow molded case create a hinge feature for convenient storage
- Perfect for professional or industrial operator
Specification:
| Item No. | Packaging | Drawer (PCS) | N.W. (KGS) | G.W. (KGS) | CBM | Sets/Ctn |
|---|---|---|---|---|---|---|
| TL-10220 | BMC | 3 | 13.2 | 13.8 | 0.045 | 1 |

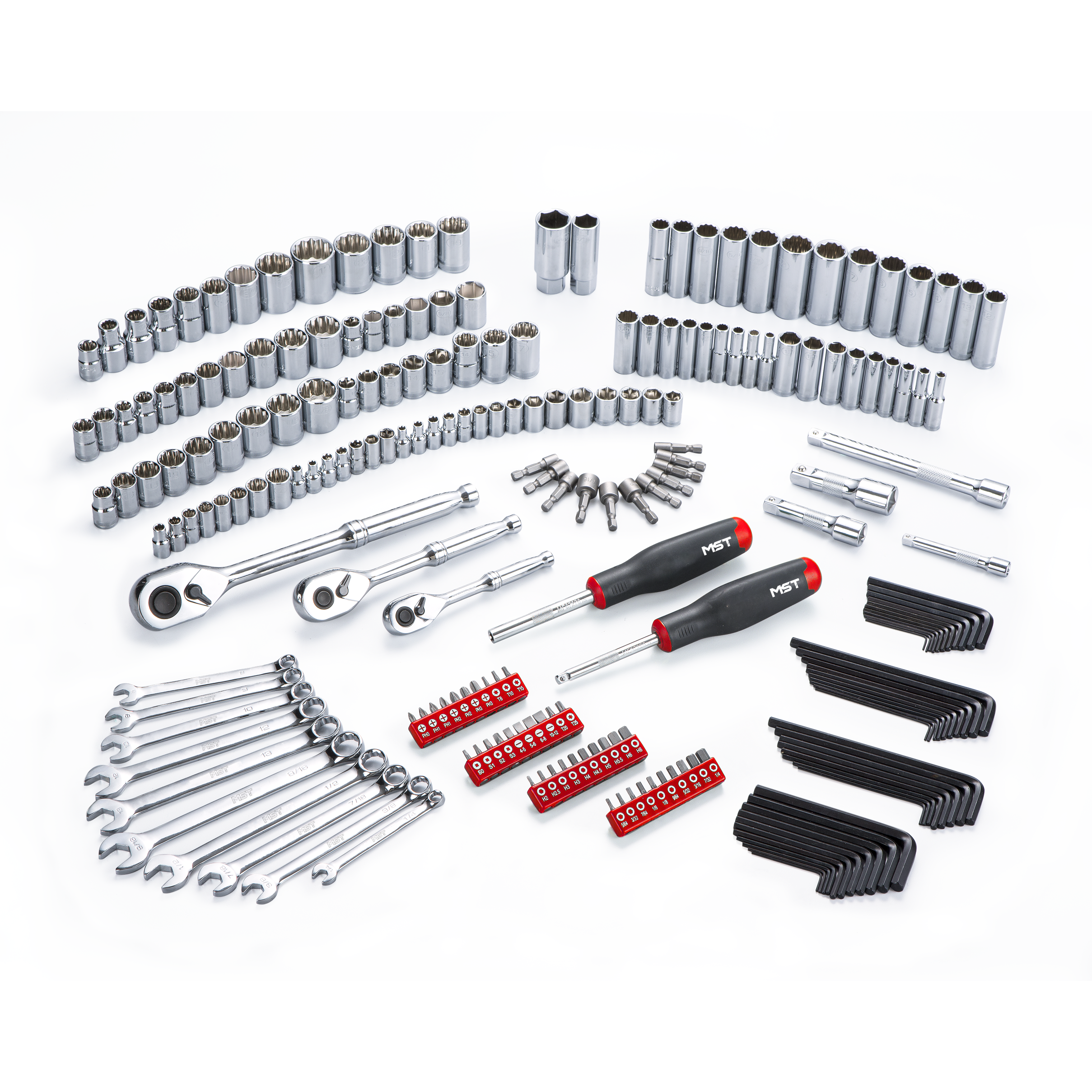

Contents:
| 1/4" DR | Q'ty |
|---|---|
| 6-Point Standard Sockets, METRIC Size: 4 mm, 5 mm, 5.5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm |
11 |
| 6-Point Deep Sockets, METRIC Size: 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm |
9 |
| 6-Point Standard Sockets, SAE Size: 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16" |
11 |
| 12-Point Standard Sockets, SAE Size: 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 1/2" |
8 |
| 12-Point Deep Sockets, SAE Size: 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 1/2" |
9 |
| Ratchets And Drive Tools 72-tooth quick release ratchet, Spinner handle, 3" extension, Magnetic bit driver |
4 |
| 3/8" DR | Q'ty |
|---|---|
| 6-Point Standard Sockets, METRIC Size: 10 mm, 12 mm, 13 mm, 14 mm, 15 mm |
5 |
| 6-Point Standard Sockets, SAE Size: 3/8", 7/16", 1/2", 9/16", 5/8", 11/16" |
6 |
| 12-Point Standard Sockets, METRIC Size: 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm |
11 |
| 12-Point Standard Sockets, SAE Size: 5/16", 3/8", 7/16", 1/2", 9/16", 5/8",11/16", 3/4", 13/16", 7/8" |
10 |
| 12-Point Deep Sockets, METRIC Size: 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm |
7 |
| 12-Point Deep Sockets, SAE Size: 7/16", 1/2", 9/16", 5/8", 11/16", 3/4" |
6 |
| 6-Point Spark Plug Sockets, SAE Size: 5/8", 13/16" |
2 |
| Ratchets And Drive Tools 72-tooth quick release ratchet, 3" extension, 6" extension |
3 |
| 1/2" DR | Q'ty |
|---|---|
| 12-Point Standard Sockets, METRIC Size:14 mm, 15 mm, 17 mm, 18 mm, 19 mm, 21 mm, 22 mm |
7 |
| 12-Point Standard Sockets, SAE Size:3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8", 1" |
8 |
| Ratchets And Drive Tools 72-tooth quick release ratchet , 3" extension |
2 |
| 12-Point Combination Wrenches, METRIC Size: 8 mm, 9 mm, 10 mm, 12 mm, 13 mm |
5 |
| 12-Point Combination Wrenches, SAE Size: 1/4", 3/8", 7/16", 1/2", 9/16" |
5 |
| (91 pcs )-Assorted Tools | Q'ty |
|---|---|
| 20 pcs Hex Key Set (in pouch) Short arm: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 4,5 mm, 5 mm, 5,5 mm, 6 mm, 7 mm, 8 mm Long arm: 1.5, 2, 2.5, 3, 4, 4.5, 5, 5.5, 6 |
20 |
| 20 pcs Hex Key Set (in pouch) Short arm: 0,05", 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16", 7/32", 1/4" Long arm: 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16", 7/32", 1/4" |
20 |
| Nut Driver Bit Set Size: 5 mm, 6 mm, 8 mm, 10 mm, 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16" |
11 |
| Hex Screwdriver Bit Set (1") METRIC (10) - 2, 2.5, 3 (2), 4, 4.5, 5, 5.5, 6 (2) mm SAE (10) - 5/64, 3/32, 7/64, 1/8 (2), 9/64, 5/32, 3/16, 7/32, 1/4" Robertson (4) - S0, S1, S2, S3 Phillips (7) - P0, P1 (2), P2 (2), P3 (2) Slotted (4) - 4-5, 5-6, 6-8, 10-12 Star (5)- T8, T10, T15, T20, T25 |
40 |
